1000 kN cable testing machine
Entity attached to:
Main activity

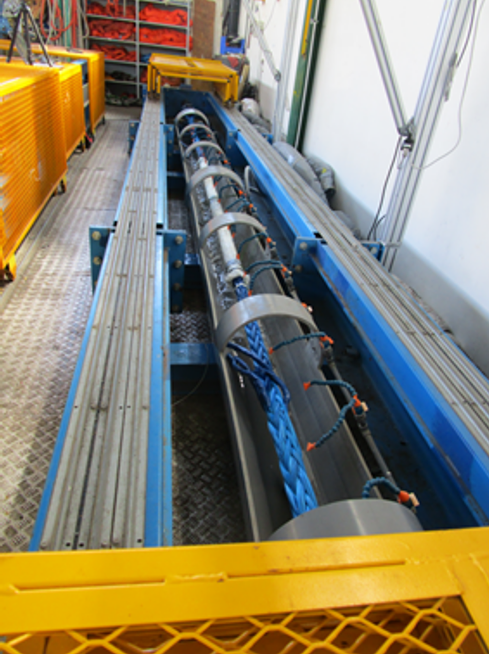

8 meter long test frame, load capacity 1000 kN, hydraulic piston displacement 1.5 meters, suitable for testing synthetic fibre ropes.
Description
Description
Certification, standardization, calibration
Category
Land-based tests and test sites for engineering and ocean observation
Analyses, measurements and metrology
Test bench
Analyses, measurements and metrology
Test bench
hasafcfaf18-c675-48af-beca-8bb1ff090072
Scientific disciplines
Naval engineering
Materials
Marine renewable energies
Oceans engineering
Materials
Marine renewable energies
Oceans engineering
Strategic areas of action
Marine energy and mining resources
Shipbuilding and leisure boatbuilding
Shipbuilding and leisure boatbuilding
Examples of work
Citeph, France Energies Marines
Type of entity
Equipment
Keywords
Breakage test, Rope, Floundering, Breakage
Modification date: 09/04/2025 03:32:28
Breaking tests on ropes and cables
Concerned publics
All
Terms of access
Research collaboration access
Full service access
Supervised access
Full service access
Supervised access
Movable ?
yes
no
Description
Characterisation of the mechanical behaviour of cables and ropes in tension at break, either in tension or bending on pulleys. Tests carried out under controlled humidity and temperature conditions. Elongation measurements by sensor and/or image analysis. Standard loading sequences or from specific spectra files.
A pioneer in ocean science, IFREMER's cutting-edge research is grounded in sustainable development and open science.His vision is to advance science, expertise and innovation to protect and restore the ocean, sustainably use marine resources to benefit societ, create and share ocean data, information & knowledge.
With more than 1,500 personnel spread along the French coastline in more than 20 sites, the institute explores the 3 great oceans: the Indian, Atlantic and Pacific oceans.
Founded in 1984, IFREMER is a French public organization and its budget approximates 240 million euros. It is operating under the joint authority of the French Ministry for Higher Education, Research and Innovation, the French Ministry for the Ecological and Solidary Transition, and the French Ministry of Agriculture and Food.
With more than 1,500 personnel spread along the French coastline in more than 20 sites, the institute explores the 3 great oceans: the Indian, Atlantic and Pacific oceans.
Founded in 1984, IFREMER is a French public organization and its budget approximates 240 million euros. It is operating under the joint authority of the French Ministry for Higher Education, Research and Innovation, the French Ministry for the Ecological and Solidary Transition, and the French Ministry of Agriculture and Food.
The research unit comprises two laboratories and one service: - The Behaviour of Structures at Sea laboratory, LCSM - The Detection, Sensors and Measurements laboratory, LDCM - The Marine Instrumentation and Engineering service, SI2M The main idea of this research unit is to unify a sciences section for engineers within IFREMER, highlighting the role that technology plays in oceanographic research, and particularly in demonstrating the complementary nature of upstream technological research and downstream developments that allow technological transfer to scientists and industrial players. The research unit teams fall under the scope of EDROME, which has been awarded the Carnot label by the Ministry of Research. This label fosters the development of partnership research performed for companies.
